V-SAT Z-Series MK2
High-performance Ku-band maritime VSAT antenna system featuring carbon-fiber composite dome and dual-axis tracking.
[ PRODUCT OVERVIEW ]
The Sailor V-SAT Z-Series MK2 is engineered to provide reliable, high-speed broadband communications under the most demanding sea conditions. Constructed with carbon-fiber composite materials, this antenna system offers extreme durability while significantly reducing weight on ship masts.
With built-in GPS and a gyro-compass interface, the Z-Series MK2 ensures rapid satellite signal acquisition and tracking. It is ideal for merchant vessels and workboats requiring constant global connectivity for navigation and crew services.
[ TECHNICAL SPECIFICATIONS ]
| Reflector Diameter | 1.0m (39.4 inches) |
| Radome Dimension | 1.36m (D) x 1.45m (H) |
| Frequency Band | Ku-Band (Rx: 10.7-12.75 GHz, Tx: 13.75-14.5 GHz) |
| Antenna Gain | Rx: 39.8 dBi @ 11.7 GHz, Tx: 41.3 dBi @ 14.25 GHz |
| Tracking Speed | More than 90 deg/sec |
| Operating Temperature | -25°C to +55°C |
[ KEY FEATURES ]
- Simultaneous satellite tracking with dual-axis polarization control
- Built-in GPS and Gyro-compass interface for fast signal lock
- Carbon-fiber composite reflector dome for extreme durability and low weight
- Web-based management interface for easy configuration and remote diagnostics
- Global satellite network support for seamless beam switching transitions
[ DOCUMENTATION & MANUALS ]
- Sailor VSAT Z-Series MK2 BrochureDOWNLOAD PDF
Request a quote for V-SAT Z-Series MK2.
Our technical sales desk will contact you within 24 hours to supply scoping and quotes.
[ RELATED EQUIPMENT ]
BROWSE FULL CATALOG
V-SAT Z-Series MK4
KNSNext-generation Ku-band stabilized maritime VSAT terminal featuring 3-axis tracking and DVB-S2X signal lock.

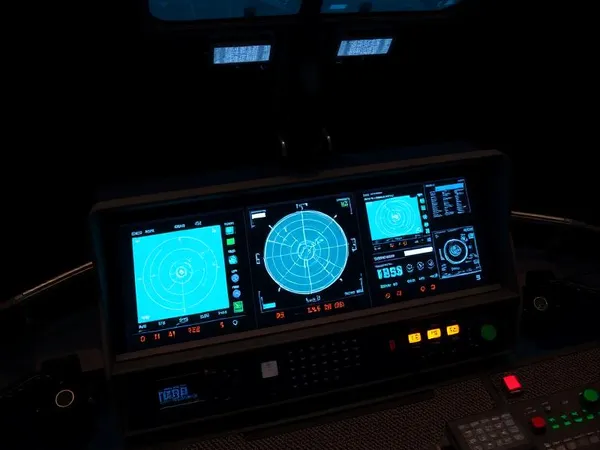

MF/HF WT-6000 Radio Station
